About vertical turbine pump

Vertical turbine pump is a specialized centrifugal pumps designed to move water from a well or reservoir that is deep underground. Also known a deep well turbine pump or a lineshaft turbine pump, it is one of two main types of turbine pumps.

The two main types of turbine pumps are vertical turbine pumps and submersible turbine pumps. While submersible pumps have the electric motor located underwater at the bottom of the pump, vertical turbine pumps have the motor located above ground, connected via a long vertical shaft to impellers at the bottom of the pump. The term “turbine” in the pump name is somewhat of a misnomer, as this pump type has nothing to do with a turbine.

Working principal of vertical turbine pump

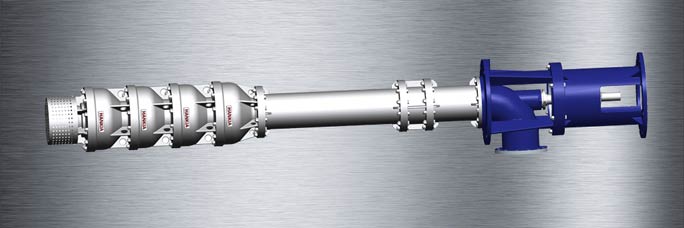

The vertical turbine pumps are usually driven by an AC electric induction motor or by a diesel engine through a right angle drive. The pump end consists of at least one rotating impeller that is attached to a shaft and directs the well water into a diffuser casing called a bowl.

Multi-stage configurations use multiple impellers on the same shaft to create higher pressure that would be needed for deeper wells or higher required pressure (head) at ground level.

Vertical turbine pumps work when water enters the pump at the bottom through a bell-shaped part called the suction bell. From there it moves into the first stage impeller, which raises the water’s velocity. The water then enters the diffuser bowl immediately above the impeller, where this high velocity energy is converted into high pressure. The bowl also directs the fluid into the next impeller located immediately above the bowl, and this process continues through all of the stages of the pump.

After the water leaves the last diffuser bowl, it passes through a long vertical column pipe as it rises up the well bore toward the surface. The spinning shaft inside this column is supported at three- or five-foot intervals with sleeve bushings that are mounted inside the column and lubricated by the water moving past them. At the surface is the pump discharge head, which allows the flow to change direction, toward the discharge pipe. A vertical high thrust A.C. motor is mounted above the discharge head.

Application of vertical turbine pump

Vertical turbine pumps are primarily used wherever a submersible pump is not possible, because the flow is above the range of turbines, or because the owner prefers a conventional motor mounted at the top of the pump.

They are commonly used in wells that are bored to provide agricultural or turf irrigation, or to provide water supply for municipalities that rely on ground water rather than surface water. They are also used to provide plant make-up water and fire water for industrial plants.

Vertical turbine pumps may also pump from an open body of water such as a river, reservoir, or pump intake structure, rather than from a bored well. They can also be mounted on top of a tank in an industrial settings. They may also be mounted inside a barrel, so that the suction source may be higher or lower than atmospheric pressure. The pump in this configuration may be used as a booster pump for boosting municipal water supply, or in an industrial application where the pressure (head) must be boosted. Or it can take suction from a vessel under vacuum, such as a hot well condensate pump application.

Vertical turbine pumps are very versatile, with flows ranging from around 50 gpm to 30,000 gpm and higher. The pump is also very versatile as to the amount of head generated, as the pump can be built with one stage or many. These advantages make it one of the most common types of centrifugal pumps, and it’s used in many commercial, industrial, municipal, and agricultural applications.

LS type pumps manufactured by Hankia Pump is the vertical turbine pump mentioned abover. If you need the application of vertical turbine pump, LS is the statisified pumps.
