All pumps listed in this section are designed in compliance with API610 and ISO13709 standard that are mainly used as petroleum chemical pump for chemical process, water feeding, petroluem (oil) transferring and so on.

DSP (BB1 type) single stage split case pump and MDS (BB3) multistage split case pump are mainly used for petroluem (oil) transferring, loading, lifting. They are ideal main pumps for your chemical and petroleum projects on land or offshore.

HMC (BB4) mulistage ring section is usally used as high pressure water feeding pumps or boiling water pump.

HMD (BB5) is the barrel case pump (called as double case pump in API610) that is used for extra high pressure pumps.

There are three types of end suction pump in complance with API610 and ISO13709 mainly for chemical process pumps. Those pumps are CA OH1 petroleum chemical pump, CC OH2 petroleum chemical pump and CO petroleum chemical pump. CO type with open or semi-open impeller can be OH1 and OH2 construction.

For the chemical controlling or automatic process, we have SP type self-priming chemical pump in compliance with ISO5199 and API610.

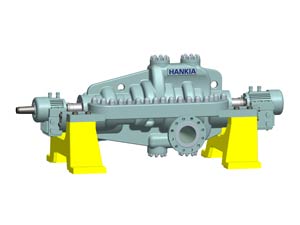

MDS type is the axially split case pump, multistage stage pump that is completely designed according to API610 10^th and ISO13709, BB3 type. MDS type multistage split case pump are featured as high efficiency in wide performance range, low NPSHr, suitable for heavy duty service. MDS multistage split case pump is mainly used for petroleum (oil), crude oil, chemical liquid transferring and loading on land or offshore, system boosting, and so on
However, Hankia Pump also can offer tailor made pumps to meet the special requirement on working temperature, corrosive liquid, NPSHr and efficiency, etc. in the projects. If you have special request for API610 / ISO13709 BB3 multistage split case pump, do not hesitate to contact Hankia, we will present to you an optimized proposal.

Main designing features

• Axially split case for easy maintenace.
• Back-to-Back stacked impeller to avoid the axial thrust.
• Rigid parts and design allow the pump suitable for heavy duty service and viscous liquid.
• First stage can be double suction impeller
• Optional inducer impeller can improve the NPSHr to meet your application.
• Optional shaft sealing for single seal mecanical seal, double mechanical seal, cartridge mechanical seal.
• Bearing bracket with cooling jacket or finned shape cooled by fan to ensure long bearing life and stable pump working.
• Bearing lubrication is optional for grease, ring oiled, splashed systems or pressuriszed systems.
• Bearing type can be rolling element bearng and sleeve bearing.
• Complete stropes are machined already for your complete monitor system to the pump.

Main benefits

• Optimum hydraulics optimized by CFD analysis and the fluid experts from Hankia Pump
• 3D design to ensure nice performance and excellent construction.
• Low NPSHr and high efficiency at wind performance range.
• Many choices for material, cast iron, cast steel, all stainless steel and duplex stainless steel, bronze for your different application.
• Excellent pumps with fast delivery.
• Simple design to reduce your maintenance cost.
• Long lifetime and reliable working.

Main application

• Transfering the crude oil, light oil, or other chemical liquid
• Oil loading from or to ships
• High pressure water feeding at oil fields
• Boiling water feeding
• Transfering water
• Petrochemical plants and nuclear industry.

Basic service data

• Capacity
  up to 830L/s (3000m³h), if you need special performance,Hankia Pump can offer tailor made pumps for your application
• Head
  up to 1500m(4921ft), if you need special performance,we can offer tailor made pumps for your application
• Working temperature
  up to 210°C
• Design pressure
  4.0Mpa/6.3Mpa/10.0Mpa/16Mpa/20Mpa, which depends on the application.
• Nozzle
  up to 600mm or tailor design. Flange standard can be DIN, ANSI or other standard.

Performance range

Performance range at 50Hz

Performance range at 60Hz
