All pumps listed in this section are designed in compliance with API610 and ISO13709 standard that are mainly used as petroleum chemical pump for chemical process, water feeding, petroluem (oil) transferring and so on.

DSP (BB1 type) single stage split case pump and MDS (BB3) multistage split case pump are mainly used for petroluem (oil) transferring, loading, lifting. They are ideal main pumps for your chemical and petroleum projects on land or offshore.

HMC (BB4) mulistage ring section is usally used as high pressure water feeding pumps or boiling water pump.

HMD (BB5) is the barrel case pump (called as double case pump in API610) that is used for extra high pressure pumps.

There are three types of end suction pump in complance with API610 and ISO13709 mainly for chemical process pumps. Those pumps are CA OH1 petroleum chemical pump, CC OH2 petroleum chemical pump and CO petroleum chemical pump. CO type with open or semi-open impeller can be OH1 and OH2 construction.

For the chemical controlling or automatic process, we have SP type self-priming chemical pump in compliance with ISO5199 and API610.

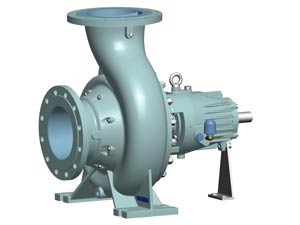

CO type is the single stage, horizontal end suction petroleum chemical centrifugal pump with semi-open or open impeller. CO (OH1 or OH2 ) petroleum chemical pump is completely in compliance with API610 10^th / ISO13709 and is design for heavy duty chemical service. CO type end suction petroleum chemical pumps are qualified pumps to transfer the corrosive liquid with or without solids and viscous liquid at different temperature. CO type (OH1 and OH2)end suction petroleum chemical pumpscan keep working at high efficiency in wide performance span.

Main designing features

• 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Hankia Pump.
• Specical optimized semi-open or open impeller has high efficiency and can afford heavy duty service.
• Designed to OH1 or OH2 type.
• Optional inducer impeller can be supplied to improve the NPSH.
• Double volute case balance the radail force to rotor.
• The stuffing box completely in complance to API 682 descriptions
• The shaft sealing is optional for single seal mecanical seal, double mechanical seal, cartridge mechanical seal and soft packing.
• Standard stuffing box cooling jacket inside the case cover allows the pump to transfer high temperaure liquid.
• Standard finned bearing bracket or bracket with cooling jacket to ensure long bearing life and stable pump working.
• Heavy duty bearing design is ring oiled.
• Complete stropes are machined already for your complete monitor system to the pump.
• Heavy duty service design, the shaft can absord the huge and unstable torque.

Main benefits

• Advance and modular design with fine production that is supplied by Hankia Pump.
• Reliable performance and quality for the complicated and special heavy duty service.
• Complete technical support and project consulting.
• High efficiency at wide performance span.
• Many choices for material, cast steel, all kinds of stainless steel, duplex stainless steel and steel alloy.
• Wind performance range and optional tailor-made design service to allow you to have a reasonable project design.
• Excellent pumps with fast delivery.
• Long lifetime and easy mentenance.

Main application

• Petroleum (refinary) and chemical plants.
• Paper and pulp industry.
• Oil and chemical loading on ships or at sea port.
• Sugar and berry industry.
• Offshore projects and sea water transferring.
• Power station and nuclear industry

Basic service data

• Capacity
  up to 556L/s (2000m³h), or as per tailor-made.
• Head
  up to 260m(853ft), or as per tailer made.
• Working temperature
  up to 450°C
• Design pressure
  2.5Mpa / 5.0Mpa /7.5Mpa or tailor made.
• Nozzle
  up to 400mm or tailor design. Flange standard can be DIN, ANSI or other standard.

Performance range

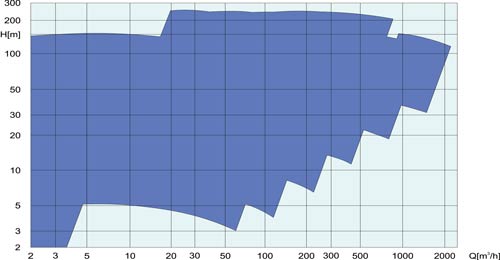

Performance range at 50Hz

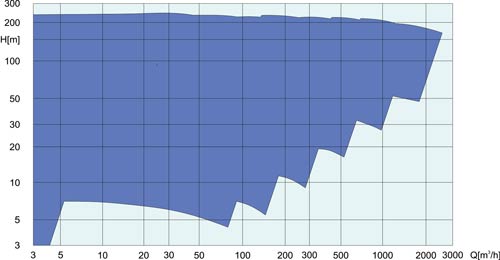

Performance range at 60Hz
