Submersible pumps are the centrifugal pump designed to function with the pump and motor submerged in the fluid to lift liquid from pits, ponds, basins, wells. Submersible pumps normally handle clean or dirty water or sewage with solids.

If the submersible pump are used for submersible sewage pump. The imeller and casing designs are different from the submersible pump mainly for clean water. It is the NS type non-clog sumbersible sewage pump with special semi-open impeller. NS non-clog sewage pump can be supplied with graining teeth on the impeller to grind or chop the waste. NS sewage pump is our generation non-clog sewage pump that is absoluted the best sewage pump on the world. Sometimes it can be use as waste water pump or sewage pump to dewater the light sewage.

SSP type submersible pump are mainly for clean water or rain water or flood water.

NX type dewatering pump is suitable to as the submersible pumps in the narrow wells, pits. Because NX dewatering pump has small bore diameter and the top axial discharge. NX dewatering pump is widely used in mining, irrigation, rain water, etc..

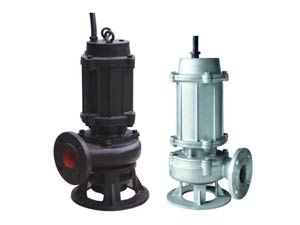

SSP type is the general submersible pump, sewage pump and waste water pump that is used to transfer the liquid with less solids and strips. It is also a nice dewatering pump for your application. After being equiped with choper and back vane impeller, the pump can be used to dewater the liquid with sand. SSP serbmersible sewage pump can be made of cast iron and stainless steel. The stailess steel submersible sewage pump are used for sea water or waste water generated by chemical factories. SSP submersible pump has stable quality and performance and widely used applied in the rain water, sea water, municipal projects, or raw water intake, etc..

Main designing features

• 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Hankia Pump.
• Optimized impeller with single channel or double channel.
• Down suction and side discharge.
• Portable installation or installed in the well though automatic coupling device.
• High efficiency submersible squirrel cage save the power consumption.
• Optional cooling jacket allow the pump to be suitable for dry installation.
• Complete monitor system allow you to operate the pump without any concerns.
• The optional choper can cut the strips into chips effectively.

Main benefits

• Advance and modular design with fine production that is supplied by Hankia Pump.
• Non-overload at full performance range.
• Maintenace freely or less maintenance.
• Many choices for material, cast iron, hart steel, high chrome cast iron, all kinds of stainless steel, duplex stainless steel and steel alloy.
• Large scale production to get economic cost, therefore competitive prices.

Main application

• Drainage of rain water, flood, waste water
• Raw water intake
• Dewatering
• Irrigation or fire fighting
• Municipal projects.
• Offshore projects and sea water transferring.
• Power station and nuclear industry

Basic service data

• Capacity
  up to 3000L/s (11000m³h), or as per tailor-made.
• Head
  up to 70m(230ft), or as per tailer made.
• Working temperature
  up to 60°C
• Design pressure
  1.0Mpa
• Nozzle
  up to 700mm or tailor design. Flange standard can be DIN, ANSI or other standard.

Performance range

Please inquiry our offices or distributors
