The single stage centrifugal pump mentioned here contain the end suction pump, close-coupled pump, inline pump. All of those pump's impeller overhungs on one end of the shaft, so they belongs to the group of overhung pumps.

The end suction pump is the most common centrifugal pump used in projects. We have IES end suction pump, NO end suction pump and NE end suction pump. Each type end suction has its own application. IES end suction pump is for general application. NO end suction pump has open or semi-open impeller are used for liquid with solids or high viscosity. NE end suction pump has inducer impeller to meet the application with low NPSH.

Another big group of pumps are close-coupled pumps. IEC close-coupled pump are derivated from IES end suction pump and have the save peformance with IES. ES colse-coupled pump are the different type of close-coupled pump usually used of 50Hz electricity.

The third group of the veritcal single stage pump are inline pump, we have IEV inline pump and ESV inline pump. IEV inline pump are also derivated from IES end suction pump and have the same performance with IEC close-coupled pump. ESV inline pump has the same performance with ES close-coupled pump.

So we suggested, if you need overhung pump, please consider firstly IES for end suction pump or IEC for close coupled pump and IEV for inline pump. because IE family pump can be used both for 50Hz and 60Hz electricity.

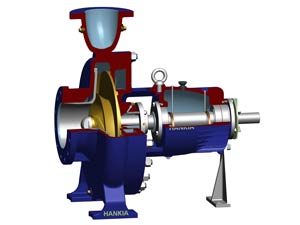

NO type is the single stage, horizontal end suction pump with semi-open or open impeller that is tailor made to your special projects. NO type end suction pump can be supplied according to both API610 standards and ISO2858 and ISO5199 standards. The pumps are designed for heavy duty survice and mainly used to pump the liquid with high temperature, big viscosity, and mixed with solids. NO type end suction pump can used for general luquid or corrosive liquid.

Main designing features

• 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Hankia Pump.
• Specical optimized semi-open or open impeller with high efficiency, that is suitable to pump the liquid with solids and strapes without clogging or the liquid with high viscosity.
• Standard foot support construction, it is also can be centerline support.
• The stuffing box complete in complance to API 682 descriptions
• The shaft sealing is optional for single seal mecanical seal, double mechanical seal, cartridge mechanical seal and soft packing.
• Optional stuffing box cooling jacket allow the pump to transfer high temperaure liquid.
• Standard finned bearing bracket can be cooled by fan to ensure long bearing life and stable pump working. If neccessary the cooling jacket can be supplied.
• Heavy duty bearing design is ring oiled.
• Complete stropes are machined already for your complete monitor system to the pump.
• The suction and discharge nozzle meet ISO2858 standars or according user's application.
• Heavy duty service design, the shaft can absord the huge and unstable torque.

Main benefits

• Advance and modular design with fine production that is supplied by Hankia Pump.
• Suitable for complicated and special service duty.
• Complete technical support and project consulting.
• Comparently high efficiency as compared with similar products in the market.
• Many choices for material, cast iron, high chrome cast steel, hard cast steel, all stainless steel and duplex stainless steel, bronze for your different application.
• Wind performance range and optional tailor-made design service to allow you to have a reasonable project design.
• Excellent pumps with fast delivery.
• Long lifetime and easy mentenance.

Main application

• Transferring high viscosity liquid, such as high temperature sugar jury, crude oil, etc.
• Transerring liquid with solid, such as sugar slurry, etc.
• Wast water pumping with dry installation
• Delivery liquid with sands or high density.

Basic service data

• Capacity
  up to 1000L/s (3600m³h), or as per tailor-made.
• Head
  up to 160m(530ft), or as per tailer made.
• Working temperature
  up to 260°C
• Design pressure
  1.6Mpa / 2.5Mpa / 5.0Mpa.
• Nozzle
  up to 500mm or tailor design. Flange standard can be DIN, ANSI or other standard.

Performance range

Please inquiry Hankia Pump's office or agents at your local markets.
