Multistage ring section pump
Pump category
Pump selection tips
All multistage pumps mentioned here are ring section pumps with redially split case. When we say multistage pump, we usually mean the multistage ring section pump although we have multistage axially split case pump. The engineers from some countries may dirrectly call it ring section pumps. We have to clarify it here in order to avoid misunderstanding. These multistage pumps are designed according to ISO standard and API610 standand.
HM type is the basic multistage ring section pumps that is the most common multitage pump that is used for clean water at different temperature. Now, we have the new generation HM multistage pump. The new generation HM multistage ring section pump has nice feature, optimizde performance, flexible nozzle orientation, etc.. It must be the best multistage pump at world class design and quality.
HMB multistage ring section pump and HMC multistage ring section pump are in compliance with API610 standard. HMB multistage pump have the back-to-back stacked impellers to automatically balance the axial hydraulic thrust. HMC multistage pump has similar working principal with HM type multistage ring section pump, but HMC multistage is designed according to API610 standard BB4 type. Untill now, we wish you have rouch idea about the difference between the four types of multistge ring section pump.

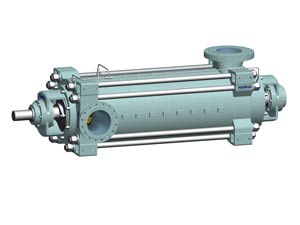

HM type horizontal multistage ring section high pressure pump
HM type is the horizontal multistage ring section pumps and high pressure pump. The impellers are stacked in single direction on the same pump shaft. The rotor is balanced by the specially designed balance drum device. The rotors are perfectly dynamically balanced and the maximum stages can be up to 16stages. HM type horizontal ring section pump has stable perfomance and excellent quality. HM type horizontal multistage pump is the ideal high pressure pumps for application.
Main designing features
- 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Hankia Pump.
- Optional inducer stage with fine iducer impeller to allow very low NPSHr.
- Fist impeller is possible to be double suction impeller to get very low NPSHr.
- The suction nozzle and discharge nozzle can be horizontal, vertical, down, any position in times of 90 degree.
- Optional shaft sealing for single seal mecanical seal, double mechanical seal, cartridge mechanical seal and soft packing.
- Standard design for stuffing box cooling jacket allow the pump to transfer high temperaure liquid.
- Bearing bracket with cooling jacket or finned shape cooled by fan to ensure long bearing life and stable pump working.
- Bearing lubrication is optional for grease, ring oiled, splashed systems or pressuriszed systems.
- Bearing type can be rolling element bearng and sleeve bearing.
- Complete stropes are machined already for your complete monitor system to the pump.
Main benefits
- Optimum hydraulics optimized by CFD analysis and the fluid experts from Hankia Pump
- Low NPSHr and high efficiency.
- 3D design to ensure nice performance and excellent construction.
- Many choices for material, cast iron, cast steel, all stainless steel and duplex stainless steel, bronze for your different application.
- Wind performance range allow you to have a reasonable project design
- Excellent pumps with fast delivery.
- Absolutely dynamically balanced rotor prolong the lifetime and supply stable performance.
- Large scale prodution and forever sparts supply and technical support.
Main application
- Long distance water transferring
- Boiling water feeding and transferring
- Fire fighting
- Water system boosting
- Mining industry
- Power station and water plant
- Offshore projects
- All other application for high pressure liquid.

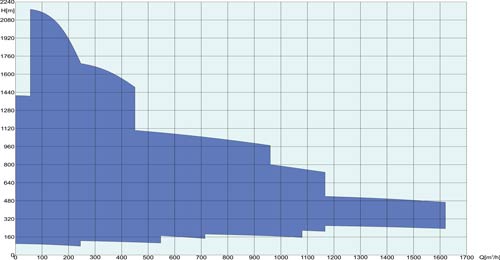

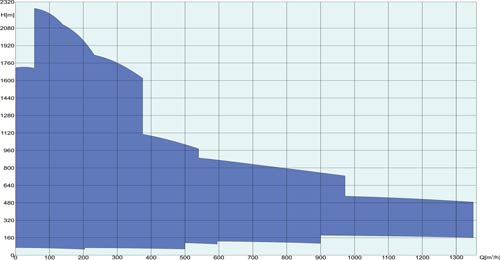

Basic service data
- Capacityup to 450L/s (1630m3h), or as per any request.
- Headup to 2300m(7550ft), or as per any request.
- Working temperatureup to 260°C
- Design pressure4.0Mpa/6.3Mpa/10.0Mpa/16Mpa/25Mpa or as per any request.
- Nozzleup to 400mm or tailor design. Flange standard can be DIN, ANSI or other standard.
