The petroleum chemical pump always focus on the reliablity because the petroleum chemical pump are usually used for corrosive liquid with high temperature and operate in dangerous condition. Hankia's have various petroleum chemical pumps according to ISO13709, API610, ISO5199 and ISO2858 by considering the application condition and project budget.
The have duty service petroleum chemical pump are mainly refer to the standard ISO13709 and API610. Those pumps are CA OH1 petroleum chemical pump, CC OH2 petroleum chemical pump and CO petroleum chemical pump. CO type with open or semi-open impeller can be OH1 and OH2 construction.
HZ chemical pump and CH chemical pump are designed according to ISO2858 to the general application of chemical liquid or chemical process controling. CH chemical pump are designed with pressure 1.6Mpa and HZ chemical are designed with 2.5Mpa as the standard configuration.
For the chemical controlling or automatic process, we have SP type self-priming chemical pump in compliance with ISO5199 and API610.
So you can find the right chemical pumps in our product range.

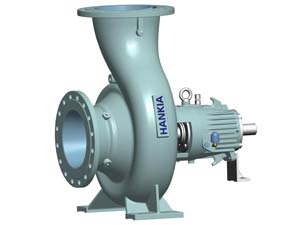

CA type end suction petroleum chemical pump
CA type is the single stage, horizontal end suction petroleum chemical pump with closed impeller and with OH1 type construction. CA type end suction petroleum chemical pump is completely in compliance with API610 10th (OH1 type) / ISO13and709 is design for heavy duty chemical service. CA type OH1 end suction petroleum chemical pumps are qualified pumps to transfer the corrosive liquid with or without solids and viscous liquid at different temperature. CA type (OH1) end suction petroleum chemical pump can keep working at high efficiency in wide performance span.
Main designing features
- 3D design used in the whole design process and CFD analysis and being embodied with knowledge and experience of the fluid experts in Hankia Pump.
- Specical optimized closed impeller has high efficiency and can afford heavy duty service.
- Double volute case balance the radail force to rotor.
- Optional inducer impeller can be supplied to improve the NPSH.
- The stuffing box complete in complance to API 682 descriptions
- The shaft sealing is optional for single seal mecanical seal, double mechanical seal, cartridge mechanical seal and soft packing.
- Standard stuffing box cooling jacket inside the case cover allows the pump to transfer high temperaure liquid.
- Standard finned bearing bracket or bracket with cooling jacket to ensure long bearing life and stable pump working.
- Heavy duty bearing design is ring oiled.
- Complete stropes are machined already for your complete monitor system to the pump.
- Heavy duty service design, the shaft can absord the huge and unstable torque.
Main benefits
- Advance and modular design with fine production that is supplied by Hankia Pump.
- Reliable performance and quality for the complicated and special heavy duty service.
- Complete technical support and project consulting.
- High efficiency at wide performance span.
- Many choices for material, cast steel, all kinds of stainless steel, duplex stainless steel and steel alloy.
- Wind performance range and optional tailor-made design service to allow you to have a reasonable project design.
- Excellent pumps with fast delivery.
- Long lifetime and easy mentenance.
Main application
- Petroleum (refinary) and chemical plants.
- Paper and pulp industry.
- Oil and chemical loading on ships or at sea port.
- Sugar and berry industry.
- Offshore projects and sea water transferring.
- Power station and nuclear industry
Basic service data
- Capacityup to 1167L/s (4200m3h), or as per tailor-made.
- Headup to 360m(1181ft), or as per tailer made.
- Working temperatureup to 450°C
- Design pressure2.5Mpa / 5.0Mpa / 7.5Mpa or tailor made.
- Nozzleup to 500mm or tailor design. Flange standard can be DIN, ANSI or other standard.
Performance range
Performance range at 50Hz
Performance range at 60Hz
